Handy Purge 100
Self Calibrating Weld Purge Monitor

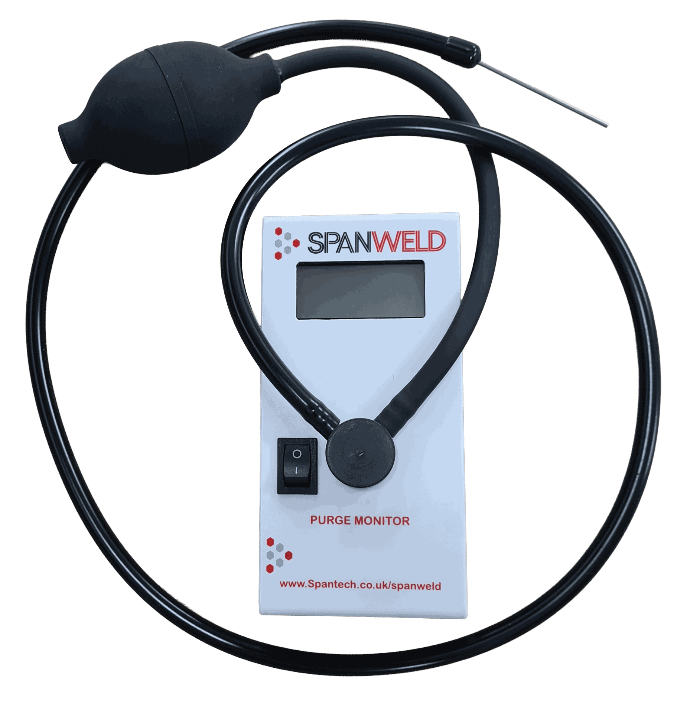

The Handy Purge 100 Self Calibrating Weld Purge Monitor is a compact oxygen monitor for weld purging designed to measure residual oxygen levels before and during welding. Built for use with purge systems and argon welding systems, it helps operators confirm when oxygen levels are low enough to begin welding and maintain better control throughout the process.
With an oxygen measuring range from 0.01% to 20.9% O2 or 100 ppm to 209,000 ppm, the Handy Purge 100 is ideal for stainless steel, duplex and selected titanium welding applications. It is lightweight, easy to use, self-calibrating and well suited to site work, routine inspections and quality control.
Key Features
- Self-calibrating
- Lightweight and easy to operate
- Suitable for on-site use
- Fast response to changing oxygen levels
- Helps show exactly when residual oxygen is low enough to start welding
- Supports reduced purge gas consumption through accurate monitoring
- Helps improve weld quality and reduce the risk of porous or discoloured welds
- Suitable for stainless steel, duplex and certain titanium applications
- Eliminates guesswork during weld purging
Specifications
- Oxygen range: 0.01% to 20.9% O2
- PPM range: 100 ppm to 209,000 ppm
- Measuring range: 20.9% down to 0.01%
- Sensor response: T90 less than 15 seconds
- Power: 9V battery (PPS type), approximately 4000 hours usage
- Operating temperature: -10°C to +40°C
- Display: 3.5 digit LCD
- Dimensions: 150mm x 80mm x 55mm
- Warranty: 12 months on sensor and electronics
The Handy Purge 100 can be supplied in either a black or white enclosure and can also be branded with company logos if required. A carry case is also available.
